Replaces: HCAK210-31, HCLP210-31, VPLE231, P2B-SXRB-115, RAK-1-15/16, NAPL210-31, PL-Y231N, UELPL210-115T, SYH-1-15/16-WM, RPL-31E, VPL-31E
| Brand | |
|---|---|

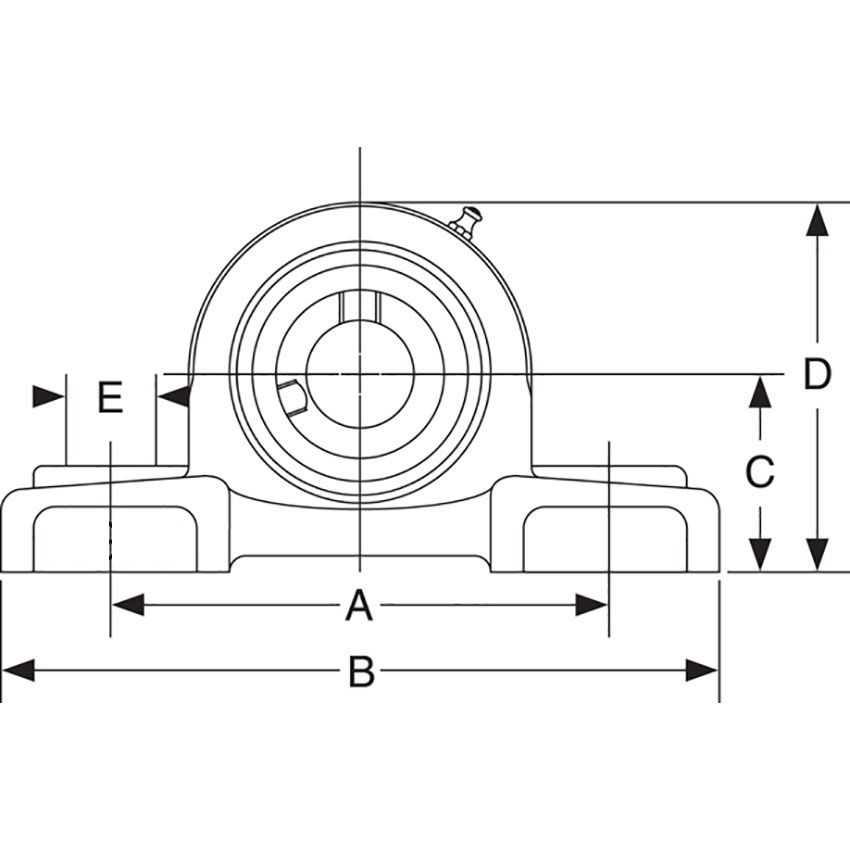

| A. Center to Center Bolt Hole | 6-1/4" |
| B. Overall Width | 8" |
| C. Center Height | 2-3/16" |
| D. Overall Height | 4-7/16" |
| E. Bolt Hole Size | 5/8" |

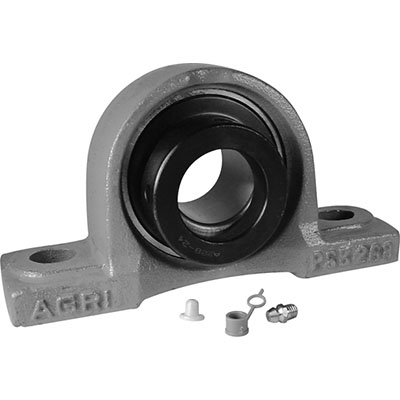

RAK Series, Cast Iron Pillow Block, Standard Duty Wide Inner Ring Bearing with Eccentric Locking Collar and Triple Lipped Seals
Replaces: HCAK205-15, HCLP205-15, VPLE215, P2B-SXRB-015, RAK-15/16, NAPL205-15, PL-Y215N, UELPL205-015T, SYH-15/16-WM, RPL-15E, VPL-15E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-1/8" |
| B. Overall Width | 5-1/2" |
| C. Center Height | 1-5/16" |
| D. Overall Height | 2-5/8" |
| E. Bolt Hole Size | 3/8" |
Replaces: DS208TT11, AS4508FC, 1905671M1
| Weight | 2.3 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
Replaces: HCAK204-12, HCLP204-12, VPLE212, P2B-SXRB-012, RAK-3/4, NAPL204-12, PL-Y212N, UELPL204-012T, SYH-3/4-WM, RPL-12E, VPL-12E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 3-3/4" |
| B. Overall Width | 5" |
| C. Center Height | 1-1/4" |
| D. Overall Height | 2-1/2" |
| E. Bolt Hole Size | 3/8" |
Replaces: HCAK206-18, HCLP206-18, VPLE218, P2B-SXRB-102, RAK-1-1/8, NAPL206-18, PL-Y218N, UELPL206-102T, SYH-1-1/8-WM, RPL-18E, VPL-18E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-3/4" |
| B. Overall Width | 6-5/16" |
| C. Center Height | 1-9/16" |
| D. Overall Height | 3-5/32" |
| E. Bolt Hole Size | 1/2" |
