Replaces: RCJ52MM 205-15

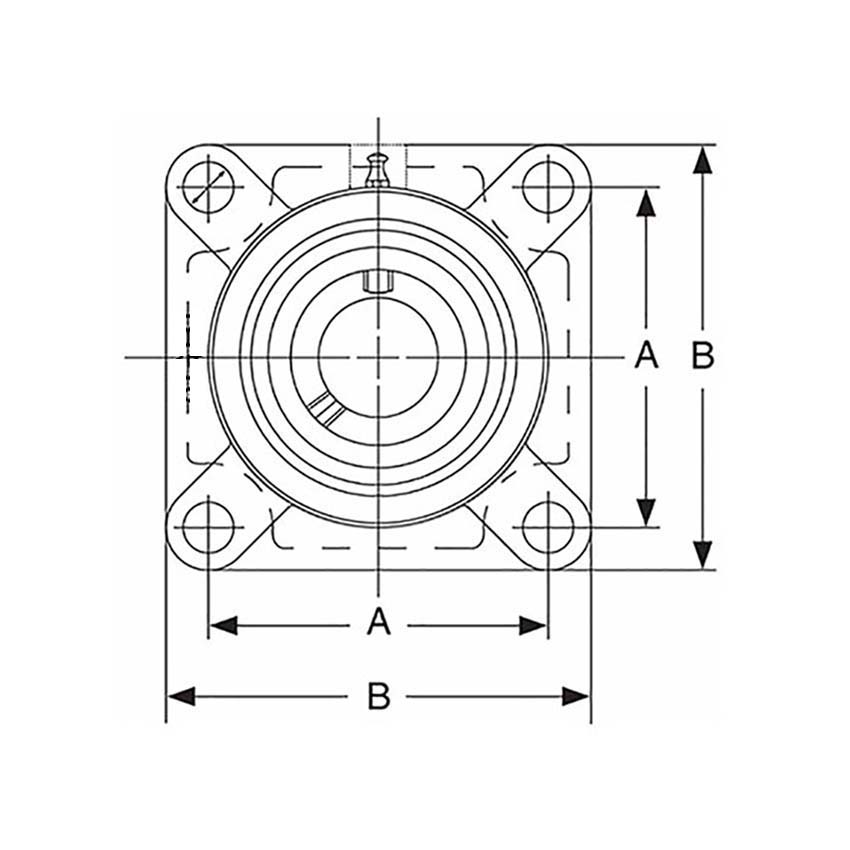

| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 2-3/4" |
| B. Overall Width | 3-3/4" |
| C. Thickness | 7/16" |
| D. Housing Height | 1-3/8" |
| E. Overall Height | 1.8819" |
| Bolt Hole Size | 3/8" |
| Bore Size |

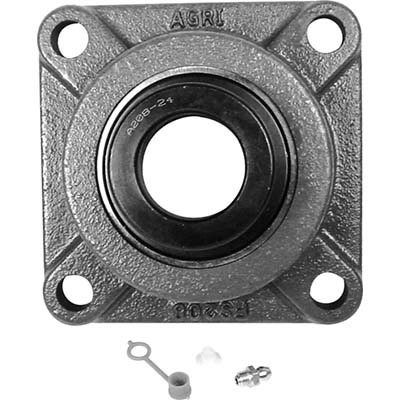

RCJ Series, Cast Iron Four Bolt Flange, Standard Duty Wide Inner Ring Bearing with Eccentric Locking Collar and Triple Lipped Seals
Replaces: DS208TTR-6
| Weight | 1.6 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
Replaces: DS211TT6, 1905380M1, PS01030, 9-90241
| Weight | 3.3 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
Replaces: HCAK206-19, HCLP206-19, VPLE219, P2B-SXRB-103, RAK-1-3/16, NAPL206-19, PL-Y219N, UELPL206-103T, SYH-1-3/16-WM, RPL-19E, VPL-19E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-3/4" |
| B. Overall Width | 6-5/16" |
| C. Center Height | 1-9/16" |
| D. Overall Height | 3-5/32" |
| E. Bolt Hole Size | 1/2" |
Replaces: DS209TT5, JD8664, 8020
| Weight | 1.7 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
