Replaces:
| Brand | |
|---|---|
| Bore Size | |
| A. Overall Length | 8-1/2" |
| B. Center to Center Bolt Hole | 7-1/4" |
| C. Overall Width | 5-1/4" |
| D. Thickness | 13/16" |
| E. Housing Height | 1-31/32" |
| F. Overall Height | 3.0315" |
| G. Bolt Hole Size | 3.00" |
| Bolt Size |

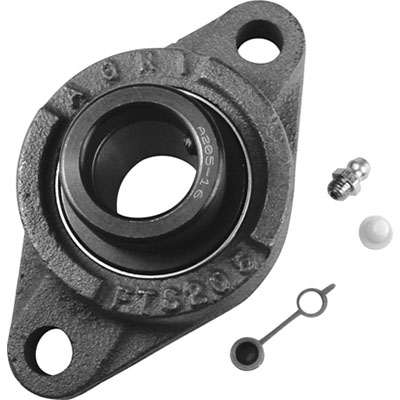

RCJT Series, Cast Iron 2 Bolt Flange, Standard Duty Wide Inner Ring Bearing with Eccentric Locking Collar and Triple Lipped Seals
Replaces: DS208TT8, AS4508EF, 10333, 1-500-07-7828
| Weight | 1.6 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
Replaces: DS208TTR-5, 087796064492, A20175, G10212
| Weight | 1.4 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
Replaces: HCAK202-10, HCLP202-10, VPLE210, P2B-SXRB-010, RAK-5/8, NAPL202-10, PL-Y210N, UELPL202-010T, SYH-5/8-WM, RPL-10E, VPL-10E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 3-3/4" |
| B. Overall Width | 5" |
| C. Center Height | 1-3/16" |
| D. Overall Height | 2-1/8" |
| E. Bolt Hole Size | 3/8" |
Replaces: HCAK205-15, HCLP205-15, VPLE215, P2B-SXRB-015, RAK-15/16, NAPL205-15, PL-Y215N, UELPL205-015T, SYH-15/16-WM, RPL-15E, VPL-15E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-1/8" |
| B. Overall Width | 5-1/2" |
| C. Center Height | 1-5/16" |
| D. Overall Height | 2-5/8" |
| E. Bolt Hole Size | 3/8" |
