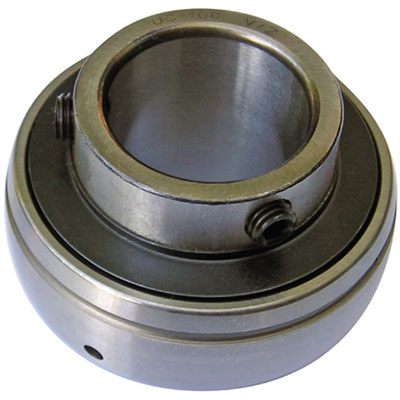

Replaces: UC209-26, VS-226, INS-SC-110, GY1110KRRB, YW250-1-5/8, UG226NL, UC209-110D1, YAR209-110, 2-1-5/8 INSERT

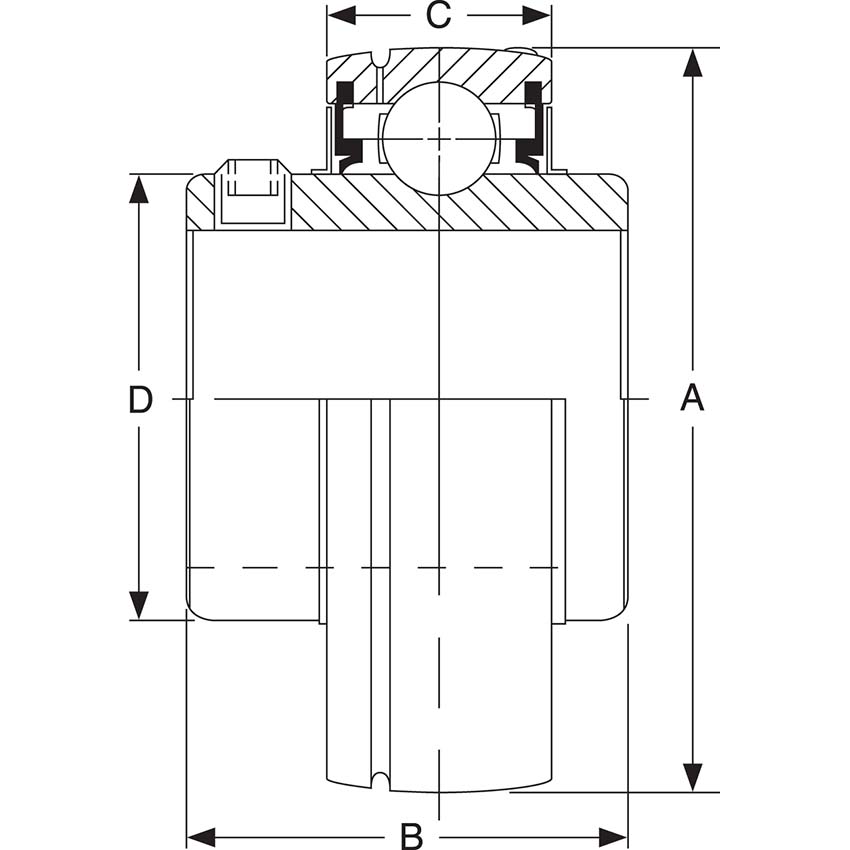

| Brand | |
|---|---|
| A. O.D. Size | |
| B. Inner Ring Width | |
| C. Outer Ring Width | |
| D. | |
| Bore Size |
Dual Set Screw Locking, Wide Inner Ring, Relube Self Aligning Bearing
Lubrication: Relube
Replaces: HCAK206-19, HCLP206-19, VPLE219, P2B-SXRB-103, RAK-1-3/16, NAPL206-19, PL-Y219N, UELPL206-103T, SYH-1-3/16-WM, RPL-19E, VPL-19E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-3/4" |
| B. Overall Width | 6-5/16" |
| C. Center Height | 1-9/16" |
| D. Overall Height | 3-5/32" |
| E. Bolt Hole Size | 1/2" |
Replaces: HCAK205-16, HCLP205-16, VPLE216, P2B-SXRB-100, RAK-1, NAPL205-16, PL-Y216N, UELPL205-100T, SYH-1-WM, RPL-16E, VPL-16E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-1/8" |
| B. Overall Width | 5-1/2" |
| C. Center Height | 1-5/16" |
| D. Overall Height | 2-5/8" |
| E. Bolt Hole Size | 3/8" |
Replaces: HCAK206-17, HCLP206-17, VPLE217, P2B-SXRB-101, RAK-1-1/16, NAPL206-17, PL-Y217N, UELPL206-101T, SYH-1-1/16-WM, RPL-17E, VPL-17E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-3/4" |
| B. Overall Width | 6-5/16" |
| C. Center Height | 1-9/16" |
| D. Overall Height | 3-5/32" |
| E. Bolt Hole Size | 1/2" |
Replaces: DS208TT8, AS4508EF, 10333, 1-500-07-7828
| Weight | 1.6 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
