Replaces:
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 6-3/16" |
| B. Overall Width | 7-7/16" |
| C. Thickness | 1/2" |
| D. Housing Height | 2.390" |
| Bolt Hole Size | 43/64" |

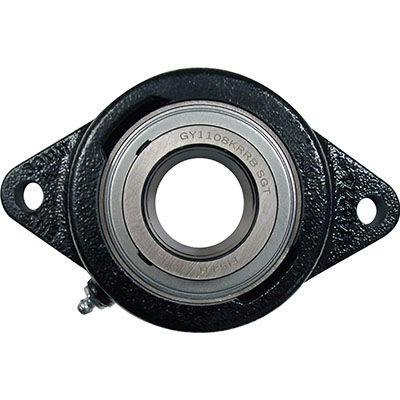

Industrial Series, 2 Bolt Flange with GY-RRB Series, Wide Inner Ring with Set Screw Locking
Replaces: DS208TT8, AS4508EF, 10333, 1-500-07-7828
| Weight | 1.6 lbs |
|---|---|
| Brand | |

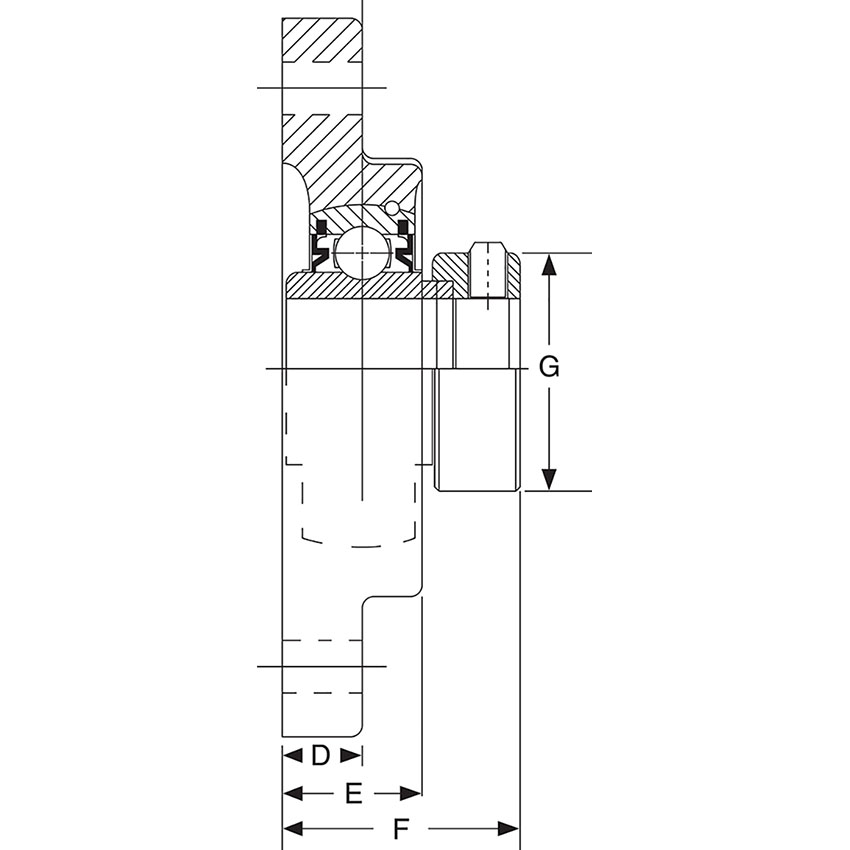

| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
Replaces: DS208TT12, 204147, T602, 142416, 14-24-16, 447899M1, 11142416, 630964R91
| Weight | 2 lbs |
|---|---|
| Brand | |
| A. Bore Size | |
| B. O.D. | |
| C. Inner Ring Width | |
| D. Outer Ring Width | |
| OD Type |
Replaces: HCAK205-15, HCLP205-15, VPLE215, P2B-SXRB-015, RAK-15/16, NAPL205-15, PL-Y215N, UELPL205-015T, SYH-15/16-WM, RPL-15E, VPL-15E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 4-1/8" |
| B. Overall Width | 5-1/2" |
| C. Center Height | 1-5/16" |
| D. Overall Height | 2-5/8" |
| E. Bolt Hole Size | 3/8" |
Replaces: HCAK202-10, HCLP202-10, VPLE210, P2B-SXRB-010, RAK-5/8, NAPL202-10, PL-Y210N, UELPL202-010T, SYH-5/8-WM, RPL-10E, VPL-10E
| Brand | |
|---|---|
| A. Center to Center Bolt Hole | 3-3/4" |
| B. Overall Width | 5" |
| C. Center Height | 1-3/16" |
| D. Overall Height | 2-1/8" |
| E. Bolt Hole Size | 3/8" |
